Precision Parts

To ensure the quality can fulfilled customer's need, we carry out Total Quality Control with well-trained QC people in every process with high-end measuring facilities.

Please select

Facility
Capability
Applications
Quality Assurance

Processing Facilities

There are also ten-something CNC turning machines, CNC milling machines, CNC grinding machine and CNC drilling machines which were made in Taiwan at our factories for precision parts.

MAZAK

INTEGREX j-200

CNC multi-tasking machine

DMG MORI

CTX alpha 300

Universal CNC lathe

DMG MORI

NTX 1000

Multi-axis machine

SHIGIYA

GPS 30B

CNC cylindrical grinder

Manufacturing Capacity

Subject	Working Range Machining Capacity	Note
Profile processing by using the CNC turning center	Outer diameter is Ø200mm,and the length is 200mm.	--
Turning & milling processing by using ( j200, NTX1000 )	Outer diameter is Ø200mm,and the length is 200mm.	--
5-axis vertical machining center ( i600 )	Outer diameter is Ø250mm,and the length is 350mm.	--
Cylindrical grinding	The maximum outer diameter is Ø270mm; the maximum length is 600mm.	We process the parts with centers at the double end surfaces
Internal grinding	The internal diameter is Ø20mm~Ø280mm,the maximum outer diameter is Ø20mm~Ø380mm and the maximum length is 260mm.	We will also discuss the slenderness ratio of part needs to be condisered.
Geometrical tolerances	Parallelism, flatness, squareness, roundness & runout : 0.001mm ~ 0.002mm; concentricity : 0.002mm ~ 0.005mm; cylindricity : 0.002mm ~ 0.005mm	--

Quality Assurance

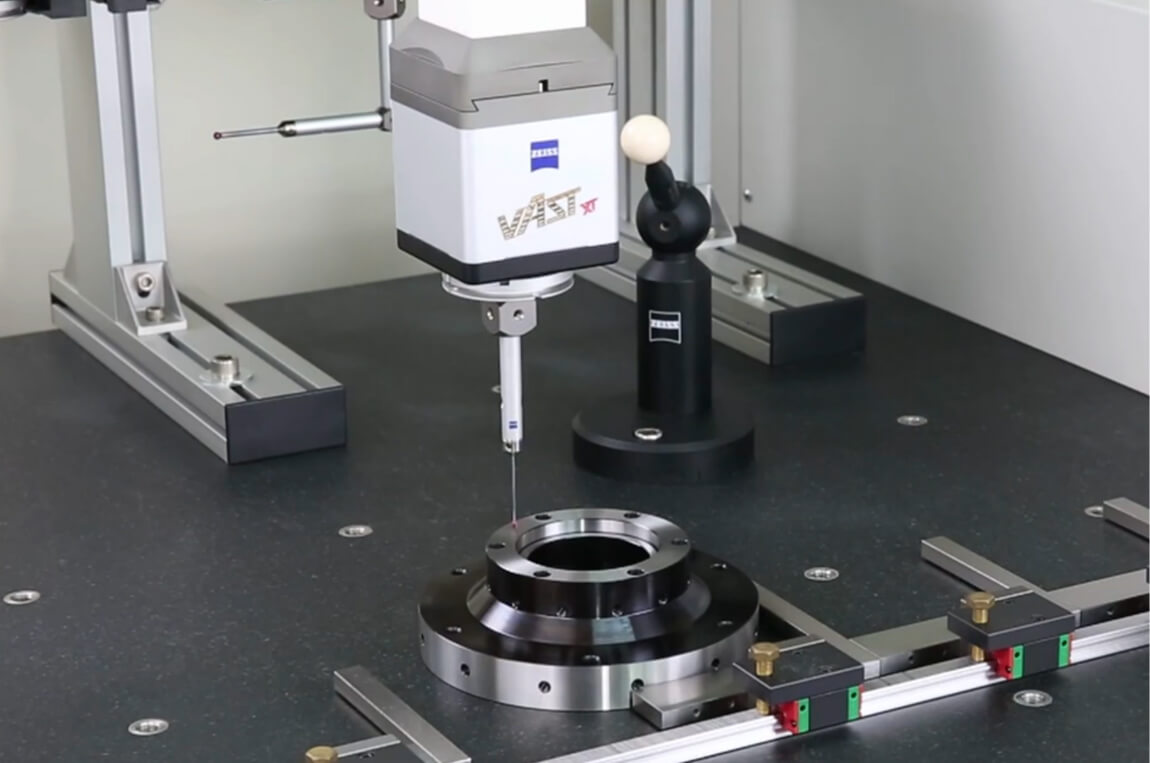

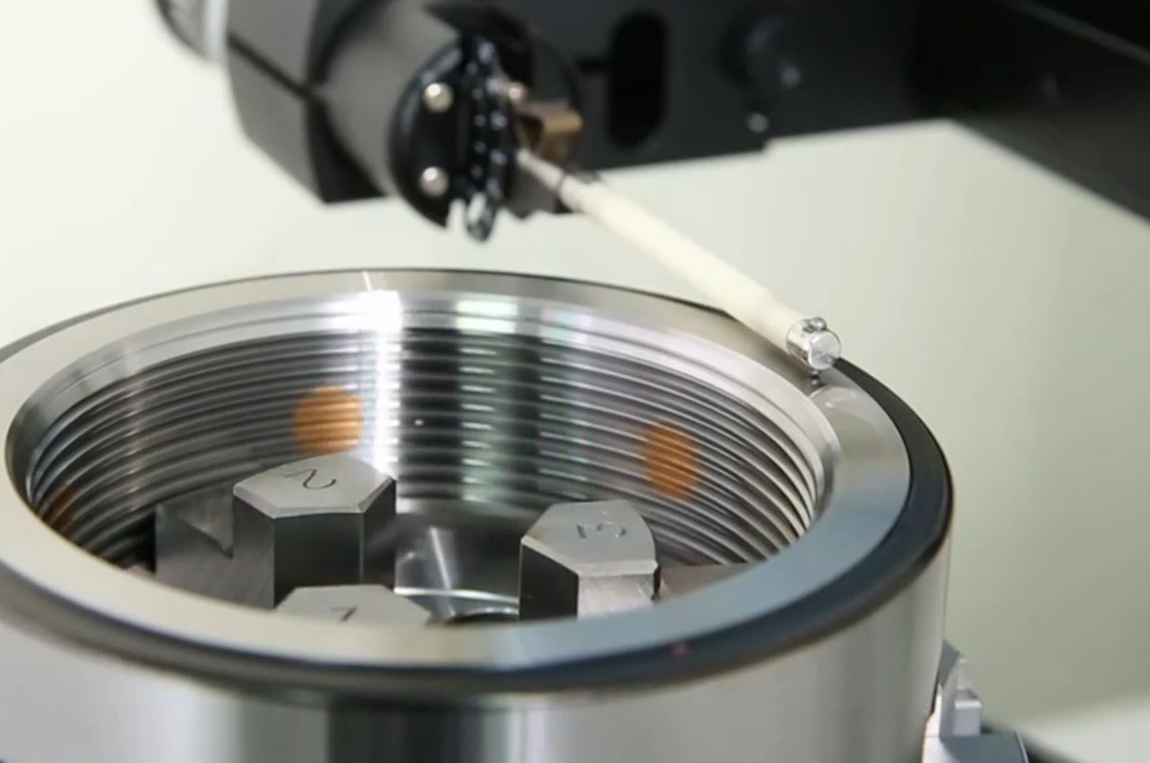

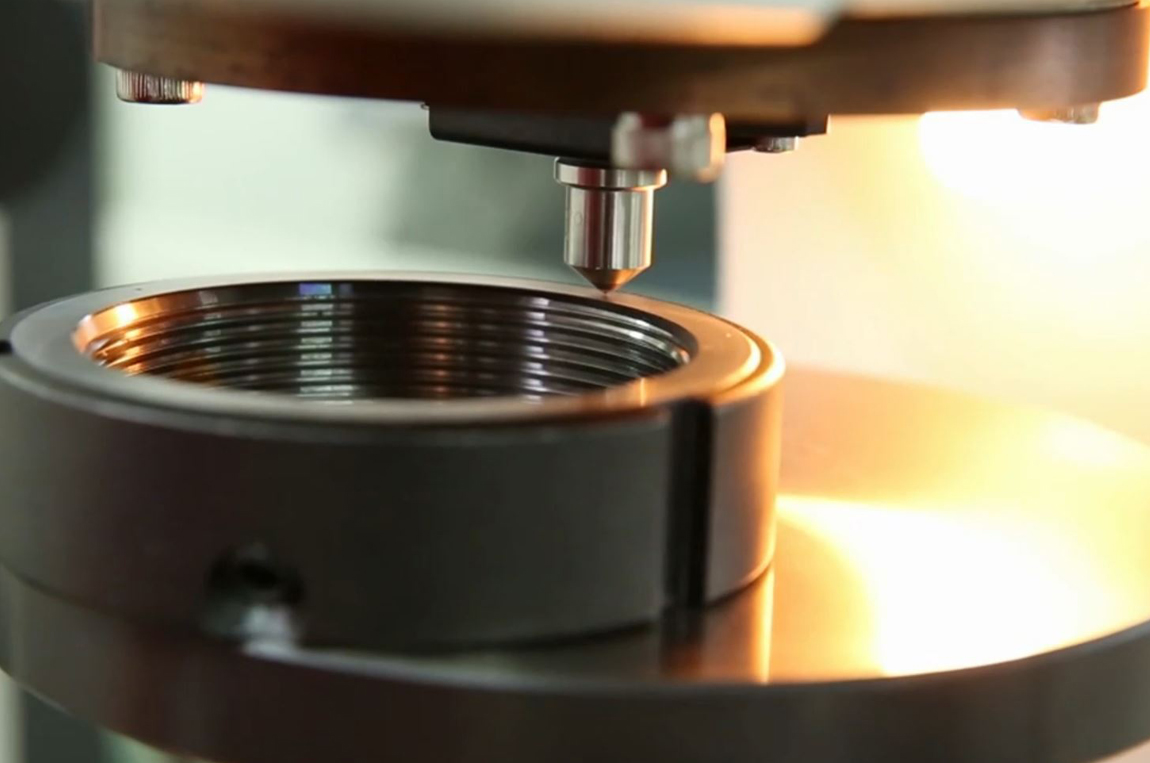

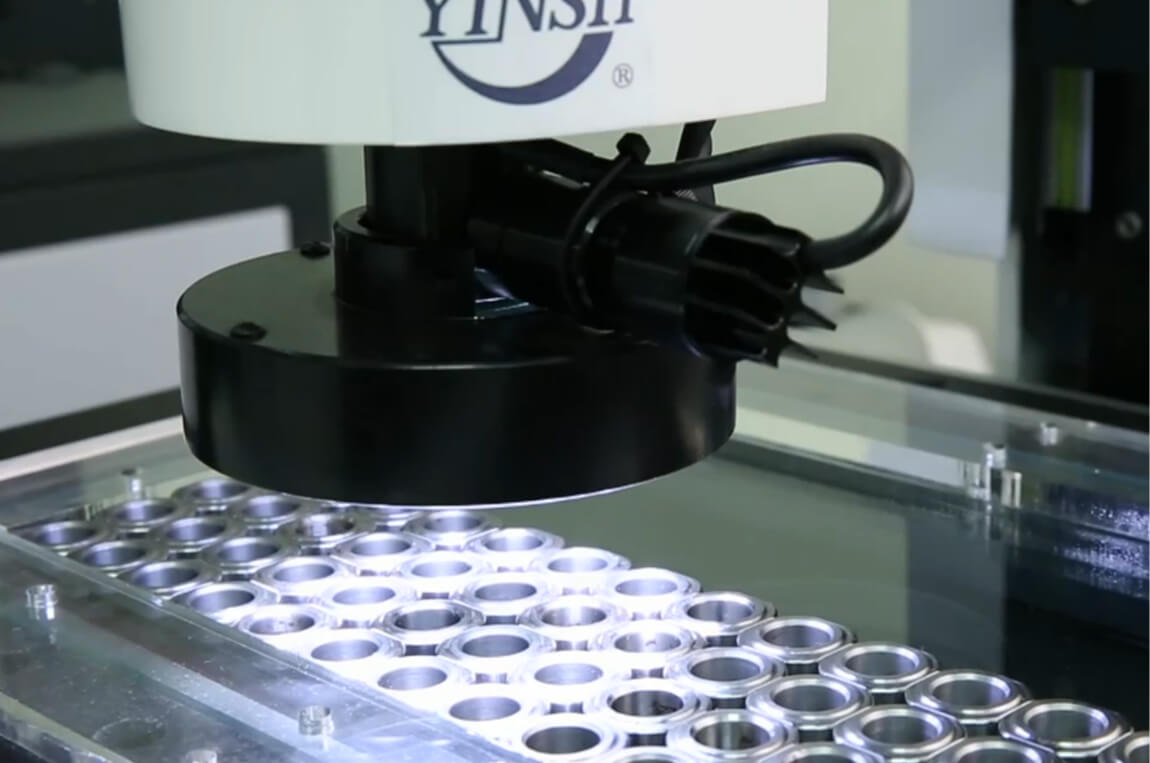

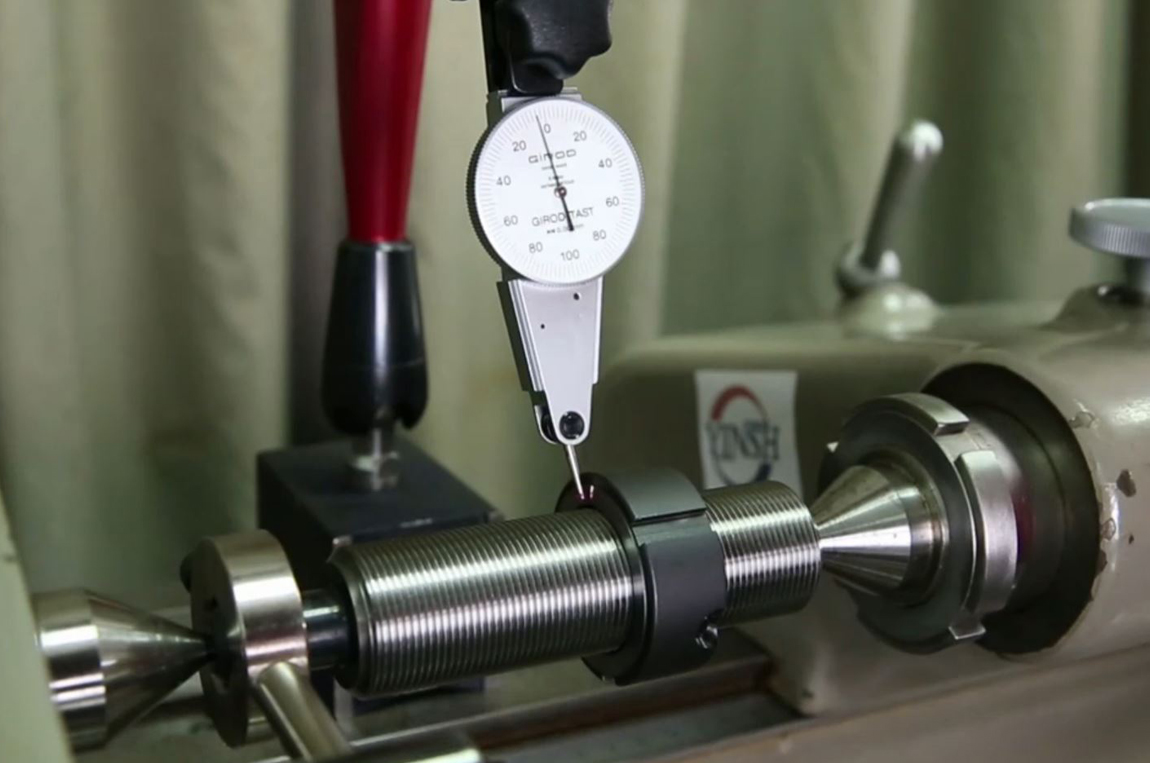

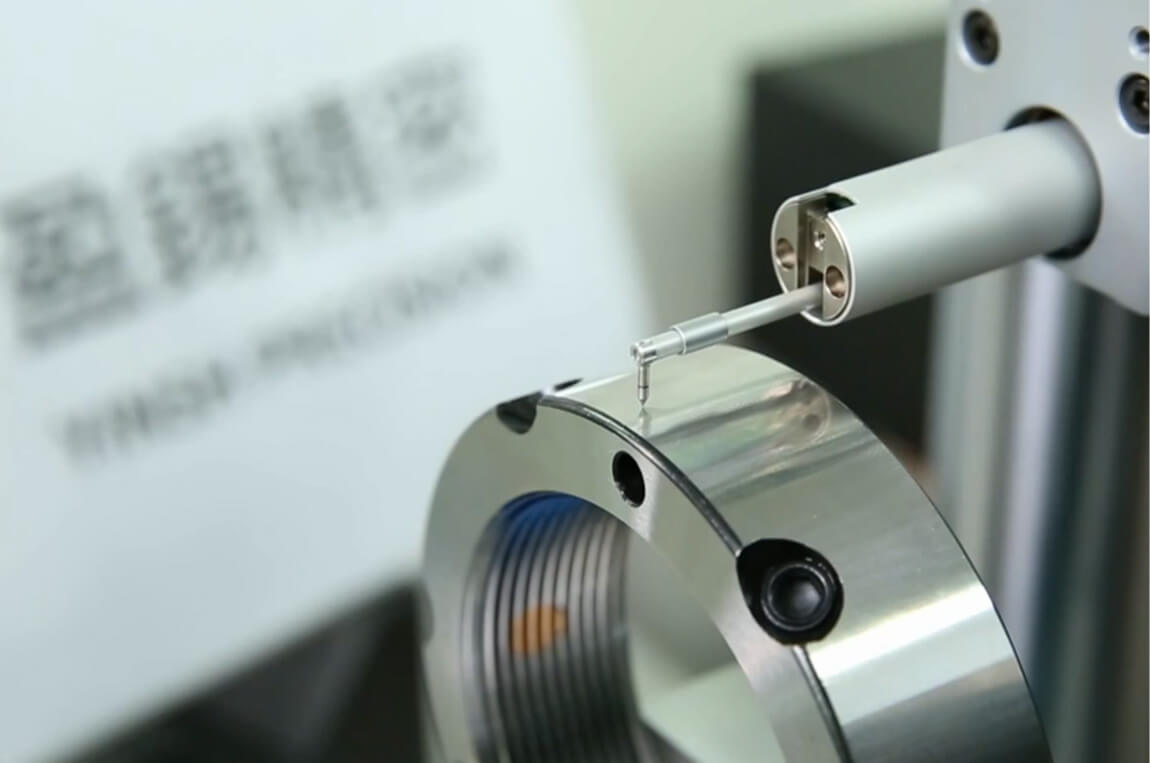

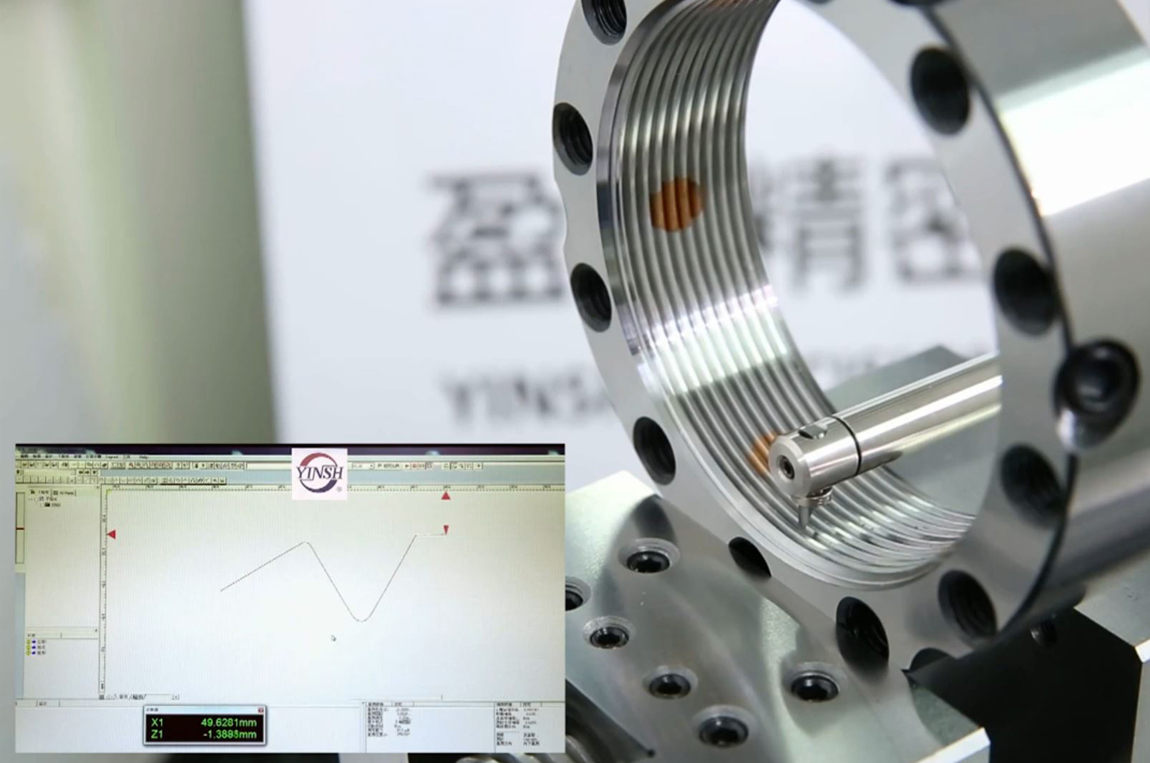

To ensure the quality of precision parts can fulfill customer's need, we carry out Total Quality Control with well-trained QC people in every process with high-end measuring facilities, our measuring equipments include Zeiss 3D coordinate measuring machine, hardness testing machine, vision measuring system, roundness instrument, contour measuring system & surface roughness tester. We also use SPC(statistical process control) to collect the inspection data in the processes of production. We find out the reasons of variation by using statistics to handle, calculate, analyze, diagram and tabulate them. If there are any reasons of variation, we will revise, eliminate and restrain them immediately so that the normal processes of production can be assured, the regulations can be assured, the regulations can be achieved and the quality level can be improved.
