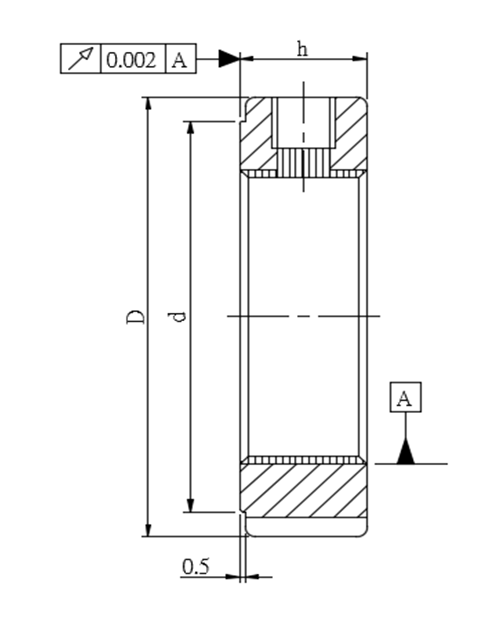

YSR

鎖定方式為徑向三點式鎖定，其厚度相較其他產品為薄，適用於螺帽厚度空間受到限制，無法使用其它產品之情況。

詳細介紹詳細介紹

材質：SCM440 (42CrMo4) 調質
硬度：HRC28° ~32°
螺紋精度：ISO 4H精密研磨
平面偏擺：M14 ~ 200 : 0.002mm
螺紋精度：ISO 4H精密車削
平面偏擺：M14 ~ 200 : 0.005mm
平面偏擺：M210 ~ 300 : 0.007mm

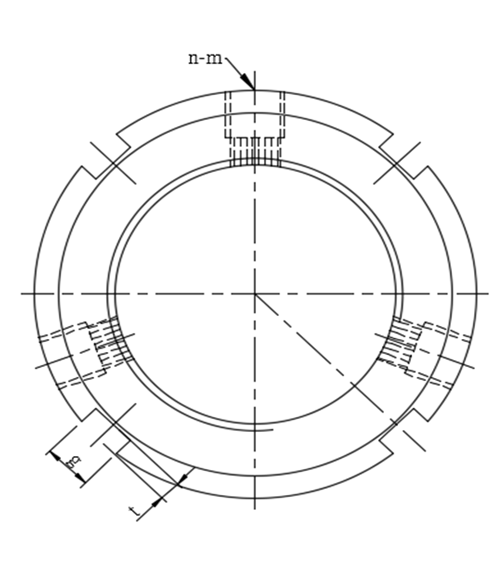

Thread	D	h	g	t	d	n-m	MAX Nm	CAD Download
YSR M6x0.5	16	8	3	2	11	2-M4	2.2	x_t
YSR M8x0.75	16				11			x_t
YSR M10x0.75	18				13			x_t
YSR M10x1	18				13			x_t
YSR M12x1	20				15			x_t
YSR M12x1.25	20				15			x_t
YSR M14x1.5	25				20			x_t
YSR M15x1	25				20			x_t
YSR M16x1.5	28	10	4		23	2-M5	4.5	x_t
YSR M17x1	28				23			x_t
YSR M18x1.5	30				25			x_t
YSR M20x1	32				27	3-M5		x_t
YSR M20x1.5	32				27			x_t
YSR M22x1.5	35				30			x_t
YSR M24x1.5	38	12	5		33	3-M6	8.0	x_t
YSR M25x1.5	38				33			x_t
YSR M27x1.5	42				37			x_t
YSR M30x1.5	45				40			x_t
YSR M33x1.5	52				45			x_t
YSR M35x1.5	52				47			x_t
YSR M36x1.5	55	14	6	2.5	49			x_t
YSR M39x1.5	58				52			x_t
YSR M40x1.5	58				52			x_t
YSR M42x1.5	62				56			x_t
YSR M45x1.5	65				59			x_t
YSR M48x1.5	68				62			x_t
YSR M50x1.5	70				64	3-M8		x_t
YSR M52x1.5	73	16	7	3	66		18.0	x_t
YSR M55x1.5	75				68			x_t
YSR M55x2	75				68			x_t
YSR M56x2	77				70			x_t
YSR M60x2	80				73			x_t
YSR M64x2	85				78			x_t
YSR M65x2	85				78			x_t
YSR M68x2	92	18	8	3.5	84			x_t
YSR M70x2	92				84			x_t
YSR M72x2	95				86			x_t
YSR M75x2	98				90			x_t
YSR M76x2	100				92			x_t
YSR M80x2	105				96			x_t
YSR M85x2	110				102			x_t
YSR M90x2	120	20	10	4	108			x_t
YSR M95x2	125				113			x_t
YSR M100x2	130				118			x_t
YSR M105x2	140	22	12	5	125			x_t
YSR M110x2	145				132			x_t
YSR M115x2	150				137			x_t
YSR M120x2	155	24			142			x_t
YSR M125x2	160				147			x_t
YSR M130x2	165				152			x_t
YSR M135x2	175	26	14	6	160	3-M10	35.0	x_t
YSR M140x2	180				165			x_t
YSR M145x2	190				175			x_t
YSR M150x2	195				180			x_t
YSR M155x3	200	28	16	7	180			x_t
YSR M160x3	210				190			x_t
YSR M165x3	210				190			x_t
YSR M170x3	220				200			x_t
YSR M180x3	230	30	18	8	205	3-M12	60.0	x_t
YSR M190x3	240	30			215			x_t
YSR M200x3	250	32			225			x_t
YSR M210x3	260				240			x_t
YSR M220x3	270				250			x_t
YSR M230x3	280	34	20	9	258			x_t
YSR M240x3	290				268			x_t
YSR M250x3	300				278			x_t
YSR M260x4	310		22	10	288	3-M14	100	x_t
YSR M270x4	320				298			x_t
YSR M280x4	330				308			x_t
YSR M290x4	340	36	24	11	315			x_t
YSR M300x4	350	36	24	11	325			x_t

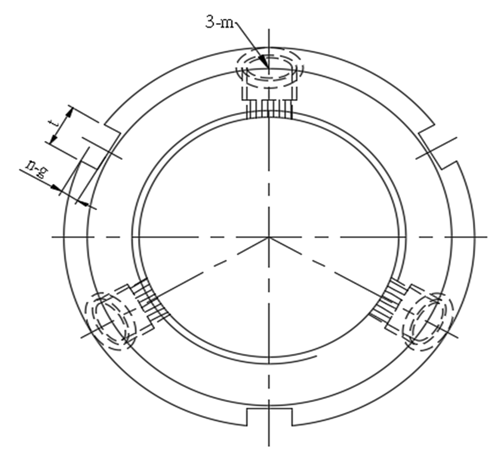

YSF

YSF鎖定方式，為螺紋半角30°角，三點式鎖定；本產品為本公司標準產品，其優異的鎖定設計，能使固定銅上之螺紋，完全契合於公螺紋上，使其防鬆效果完美無缺更因為其30°角的設計。

詳細介紹詳細介紹

材質：SCM440 (42CrMo4) 調質
硬度：HRC28° ~32°
螺紋精度：ISO 4H精密研磨
平面偏擺：M14 ~ 200 : 0.002mm
螺紋精度：ISO 4H精密車削
平面偏擺：M14 ~ 200 : 0.005mm
平面偏擺：M210 ~ 300 : 0.007mm

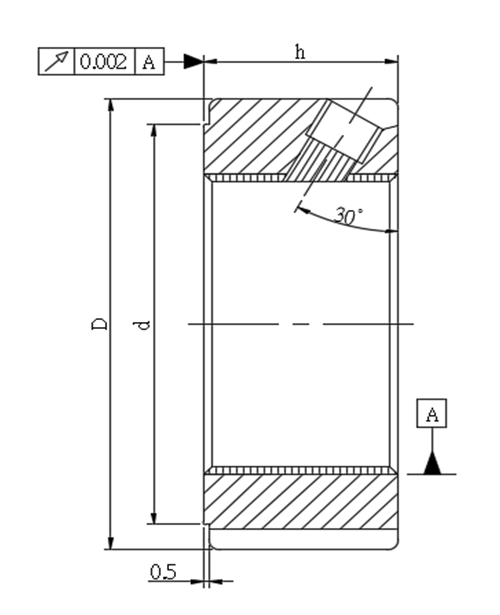

Thread	D	h	d	n-txg	m	MAX Nm	CAD Download
YSF M14x1.5	30	14	25	3-4x2	M5	4.5	x_t
YSF M15x1							x_t
YSF M16x1.5							x_t
YSF M17x1	32	16	27				x_t
YSF M18x1.5	32		27				x_t
YSF M20x1	38		33		M6	8.0	x_t
YSF M20x1.5							x_t
YSF M22x1.5							x_t
YSF M24x1.5		18		3-5x2			x_t
YSF M25x1.5							x_t
YSF M27x1.5	40		35				x_t
YSF M30x1.5	45		40				x_t
YSF M33x1.5	50		45				x_t
YSF M35x1.5	52		47		M8	18.0	x_t
YSF M36x1.5	52		47				x_t
YSF M39x1.5	58	20	52	3-6x2.5			x_t
YSF M40x1.5	58		52				x_t
YSF M42x1.5	62		56				x_t
YSF M45x1.5	65		59				x_t
YSF M48x1.5	70		64				x_t
YSF M50x1.5	70		64				x_t
YSF M52x1.5	73	22	66	3-7x3			x_t
YSF M55x1.5	75		68				x_t
YSF M55x2							x_t
YSF M56x2							x_t
YSF M60x2	80		73				x_t
YSF M64x2	85		78				x_t
YSF M65x2	85		78				x_t
YSF M68x2	92	24	84	3-8x3.5			x_t
YSF M70x2	92		84				x_t
YSF M72x2	94		86				x_t
YSF M75x2	98		90				x_t
YSF M76x2	98		90				x_t
YSF M80x2	105		96	3-8x3.5			x_t
YSF M85x2	110		102	6-8x3.5			x_t
YSF M90x2	120	26	108	6-10x4			x_t
YSF M95x2	125	26	113	6-10x4			x_t
YSF M100x2	130	26	118	6-10x4	M8	18.0	x_t
YSF M105x2	140	28	125		M10	35.0	x_t
YSF M110x2	145		132				x_t
YSF M115x2	150		137				x_t
YSF M120x2	155	30	142	6-12x5			x_t
YSF M125x2	160		147				x_t
YSF M130x2	165		152				x_t
YSF M135x2	175	32	160				x_t
YSF M140x2	180		165				x_t
YSF M145x2	190		175				x_t
YSF M150x2	195		180				x_t
YSF M155x3	200	34	180	6-14x6			x_t
YSF M160x3	210		190				x_t
YSF M165x3	210		190				x_t
YSF M170x3	220		200				x_t
YSF M180x3	230	36	205	6-16x7	M12	60.0	x_t
YSF M190x3	240	36	215				x_t
YSF M200x3	250	38	225				x_t
YSF M210x3	260	38	245				x_t
YSF M220x3	270	38	255				x_t
YSF M230x3	280	40	258	6-16x9			x_t
YSF M240x3	290	40	268				x_t
YSF M250x3	300	40	278				x_t
YSF M260x4	310	40	288	6-20x10	M14	100.0	x_t
YSF M270x4	320	40	298				x_t
YSF M280x4	330	40	308				x_t
YSF M290x4	340	42	315	6-22x11			x_t
YSF M300x4	350	42	325	6-22x11			x_t

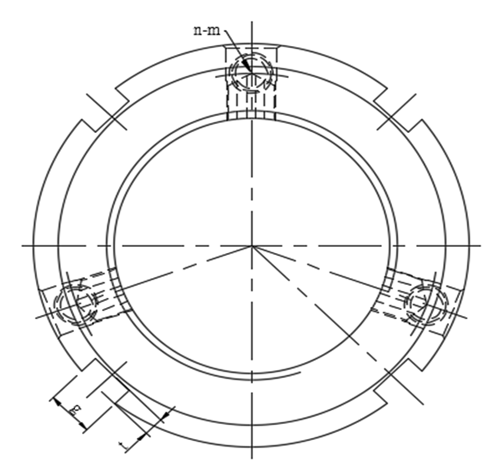

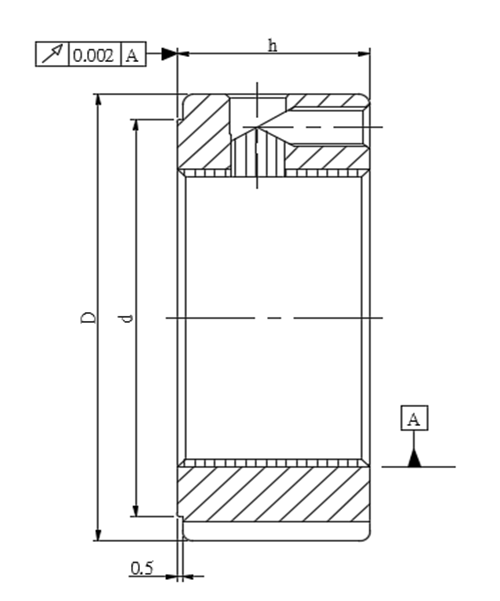

YSA

鎖定方式為軸向三點式鎖定，其厚度與YSF系列相同。軸向三點式鎖定為其特點，適用於裝配工作的特殊環境限制。

詳細介紹詳細介紹

材質：SCM440 (42CrMo4) 調質
硬度：HRC28° ~32°
螺紋精度：ISO 4H精密研磨
平面偏擺：M14 ~ 200 : 0.002mm
螺紋精度：ISO 4H精密車削
平面偏擺：M14 ~ 200 : 0.005mm
平面偏擺：M210 ~ 300 : 0.007mm

Thread	D	h	g	t	d	n-m	MAX Nm	CAD Download
YSA M14x1.5	30	14	4	2	25	2-M4	2.2	x_t
YSA M15x1								x_t
YSA M16x1.5								x_t
YSA M17x1	32	16			27			x_t
YSA M18x1.5	32				27	3-M4		x_t
YSA M20x1	38				33			x_t
YSA M20x1.5								x_t
YSA M22x1.5								x_t
YSA M24x1.5		18	5	2				x_t
YSA M25x1.5								x_t
YSA M27x1.5	40				35			x_t
YSA M30x1.5	45				40			x_t
YSA M33x1.5	50				45			x_t
YSA M35x1.5	52				47	3-M6	8.0	x_t
YSA M36x1.5	52				47			x_t
YSA M39x1.5	58	20	6	2.5	52			x_t
YSA M40x1.5	58				52			x_t
YSA M42x1.5	62				56			x_t
YSA M45x1.5	65				59			x_t
YSA M48x1.5	70				64			x_t
YSA M50x1.5	70				64			x_t
YSA M52x1.5	73	22	7	3	66			x_t
YSA M55x1.5	75				68			x_t
YSA M55x2								x_t
YSA M56x2								x_t
YSA M60x2	80				73			x_t
YSA M64x2	85				78			x_t
YSA M65x2	85				78			x_t
YSA M68x2	92	24	8	3.5	84	3-M8	18.0	x_t
YSA M70x2	92				84			x_t
YSA M72x2	94				86			x_t
YSA M75x2	98				90			x_t
YSA M76x2	98				90			x_t
YSA M80x2	105				96			x_t
YSA M85x2	110				102			x_t
YSA M90x2	120	26	10	4	108			x_t
YSA M95x2	125				113			x_t
YSA M100x2	130				118			x_t
YSA M105x2	140	28	12	5	125			x_t
YSA M110x2	145				132			x_t
YSA M115x2	150				137			x_t
YSA M120x2	155	30			142			x_t
YSA M125x2	160				147			x_t
YSA M130x2	165				152			x_t
YSA M135x2	175	32	14	6	160	3-M10	35.0	x_t
YSA M140x2	180				165			x_t
YSA M145x2	190				175			x_t
YSA M150x2	195				180			x_t
YSA M155x3	200	34	16	7	180			x_t
YSA M160x3	210				190			x_t
YSA M165x3	210				190			x_t
YSA M170x3	220				200			x_t
YSA M180x3	230	36	18	8	205	3-M12	60.0	x_t
YSA M190x3	240	36			215			x_t
YSA M200x3	250	38			225			x_t
YSA M210x3	260				240			x_t
YSA M220x3	270				250			x_t
YSA M230x3	280	40	20	9	258			x_t
YSA M240x3	290				268			x_t
YSA M250x3	300				278			x_t
YSA M260x4	310		22	10	288	3-M14	100.0	x_t
YSA M270x4	320				298			x_t
YSA M280x4	330				308			x_t
YSA M290x4	340	42	24	11	315			x_t
YSA M300x4	350	42	24	11	325			x_t

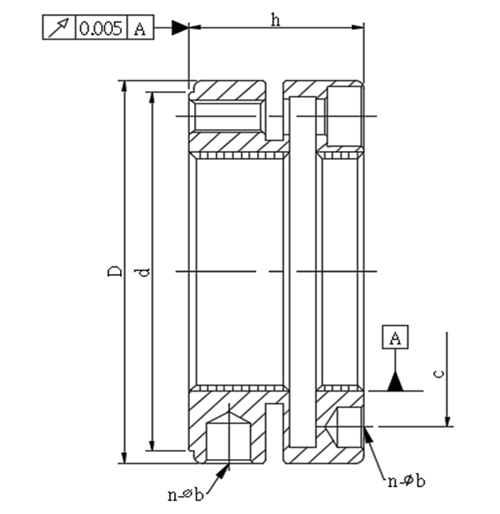

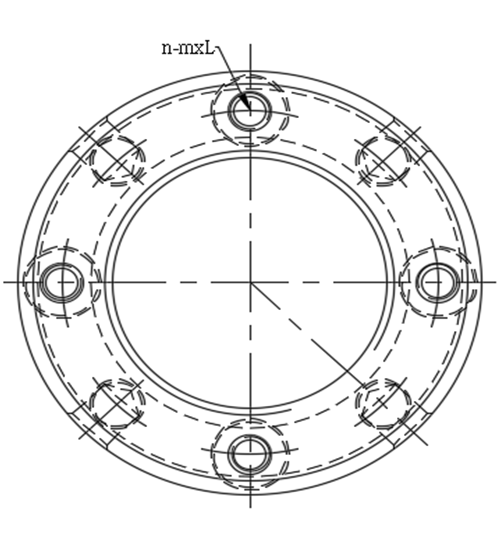

YSK

鎖定方式為利用鋼材本身的彈性，以軸向鎖固，強制鎖定。本產品特別針對工作環境惡劣、螺帽易於鬆脫的場合，其鎖定能力為傳統螺帽 3 倍以上，為其特異優點。YSK設計的鎖定方式，因為裝配上的誤差，故無法確保平面與螺紋的垂直偏擺為其缺點。

詳細介紹詳細介紹

材質：SCM440 (42CrMo4) 調質
硬度：HRC28° ~32°
螺紋精度：ISO 4H精密車削
平面偏擺：M16 ~ 200 : 0.005mm
平面偏擺：M210 ~ 300 : 0.007mm

Thread	D	h	d	n-m x L	n	b	c	MAX Nm	CAD Download
YSK M16x1.5	34	18	29	4-M4x12	4	4	24	3.5	x_t
YSK M17x1	37		32				26		x_t
YSK M18x1.5	38		33				28		x_t
YSK M20x1	40		35				30		x_t
YSK M20x1.5	40		35				30		x_t
YSK M22x1.5	42		37				32		x_t
YSK M24x1.5	44		39				34		x_t
YSK M25x1.5	45	20	40	4-M4x14		5	35		x_t
YSK M26x1.5	45		40				35		x_t
YSK M28x1.5	46		43				37		x_t
YSK M30x1.5	48		45				39		x_t
YSK M32x1.5	50	22	47	4-M4x16			41		x_t
YSK M35x1.5	53		50				44		x_t
YSK M38x1.5	56		53				47		x_t
YSK M40x1.5	58		55				49		x_t
YSK M42x1.5	60		55				51		x_t
YSK M45x1.5	68		63	6-M4x16	6	6	57		x_t
YSK M48x1.5	69	25	65	6-M4x18			58		x_t
YSK M50x1.5	70		66				60		x_t
YSK M52x1.5	72		68				62		x_t
YSK M55x1.5	75		71				65		x_t
YSK M55x2	75		71				65		x_t
YSK M58x1.5	82	26	77	6-M5x20			70	4.5	x_t
YSK M60x1.5	84		79				72		x_t
YSK M60x2	84		79				72		x_t
YSK M62x1.5	86	28	82				75		x_t
YSK M65x1.5	88		84				77		x_t
YSK M65x2	88		84				77		x_t
YSK M68x1.5	93		87			7	80		x_t
YSK M70x1.5	95		89				82		x_t
YSK M70x2	95		89				82		x_t
YSK M72x1.5	97		91				84		x_t
YSK M75x1.5	100		94				87		x_t
YSK M75x2	100		94				87		x_t
YSK M80x2	110	32	103	6-M6x22		8	95	8.0	x_t
YSK M85x2	115		108				100		x_t
YSK M90x2	120		113				105		x_t
YSK M95x2	125		118				110		x_t
YSK M100x2	130		123				115		x_t
YSK M105x2	135		128				120		x_t
YSK M110x2	140		133				125		x_t
YSK M115x2	145	34	137				130		x_t
YSK M120x2	155	36	146	6-M6x25			136		x_t
YSK M125x2	160		150				140		x_t
YSK M130x2	165		155				148		x_t
YSK M140x2	180	38	168	8-M6x25	8	10	160		x_t
YSK M150x2	190	38	178	8-M6x25			170		x_t
YSK M160x3	205	40	190	8-M8x30			178	18.0	x_t
YSK M170x3	215		200				193		x_t
YSK M180x3	230		213				205		x_t
YSK M190x3	240		223				215		x_t
YSK M200x3	245		230				223		x_t
YSK M210x3	250	42	240		8		232		x_t
YSK M220x3	260		250				240		x_t
YSK M230x3	270		260				250		x_t
YSK M240x3	280		270				260		x_t
YSK M250x3	290		280				270		x_t
YSK M260x4	300	43	290	8-M10x30		12	280	35.0	x_t
YSK M270x4	310		300				290		x_t
YSK M280x4	320		310				300		x_t
YSK M290x4	330		320				310		x_t
YSK M300x4	340		330				320		x_t

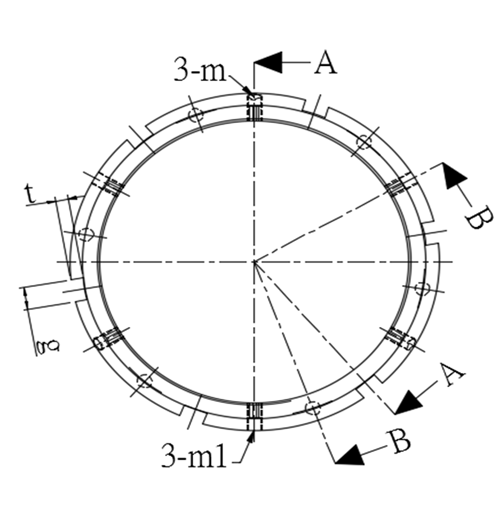

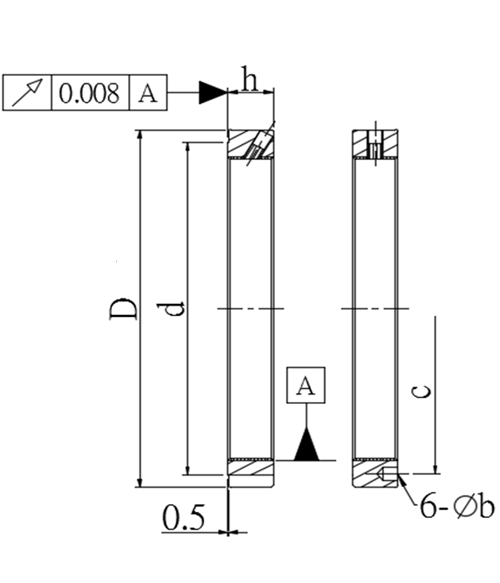

YSFR

YSFR此型螺帽，同時配置3個牙腹鎖定螺絲和3個徑向鎖定螺絲，滿足大尺寸軸心必須考慮的鎖定方式和扭緊力矩。

詳細介紹詳細介紹

材質：SCM440 (42CrMo4) 調質
硬度：HRC28° ~32°
螺紋精度：ISO 4H精密車削
平面偏擺：0.008mm

Thread	D	h	d	n x g/b	t/c		m	m1	MAX Nm	CAD Download
YSFR M310x4	365	42	340	6x24 Ø22	12	338	M14	M14	100.0	x_t
YSFR M320x4	375		350			348				x_t
YSFR M330x4	385		360			358				x_t
YSFR M340x4	395		370			368				x_t
YSFR M350x4	405		380			378				x_t
YSFR M360x4	415	44	388	6x26 Ø24	13	387	M16	M16	150.0	x_t
YSFR M370x4	425		398			397				x_t
YSFR M380x4	435		408			407				x_t
YSFR M390x4	445		418			417				x_t
YSFR M400x4	465		438	6x30 Ø26		435				x_t
YSFR M410x4	475	46	444		15	443				x_t
YSFR M420x4	485		454			452				x_t
YSFR M430x4	495		464			462				x_t
YSFR M440x4	505		474			472				x_t
YSFR M450x4	515		484			482				x_t
